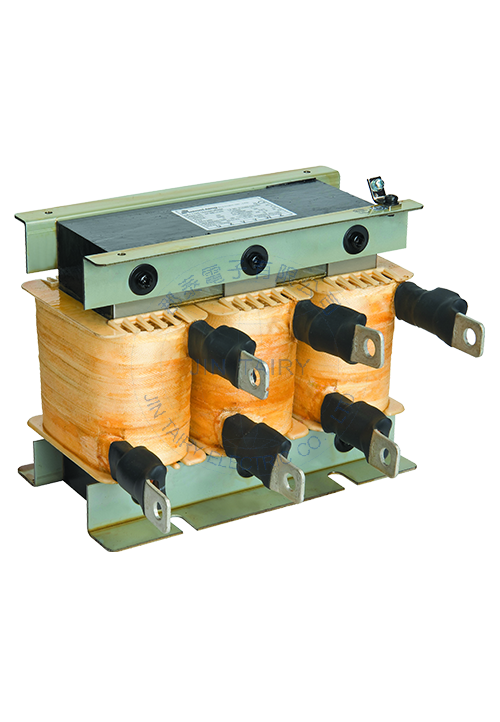

Reactor For Frequency Converter

Adding reactors at the input and output ends of electrical equipment has the effect of protecting and enhancing performance and can prevent the problem of voltage drop. The linear reactor can absorb most of the interference of the power line, and this interference problem will cause the damage or crash of the controller.

Inquiry
Back
Prev
Next

Inverter Part

  • Reduce harmonic content
  • Suppress the surge
  • Increase the life of the equipment
  • Protect the inverter
  Before installation After installation


Reactor For Frequency Converter


3ØSpecifications, Dimensions and Weight

Voltage Capacity
HP		 Inductance
mH		 Approximate Dimensions mm Approximate Weight
Kg
H W D E F
220~240 5 0.68 140 150 82 70 57 3
7.5 0.51 140 150 84 70 62 3.5
10 0.25 140 150 84 70 62 4
15 0.17 130 150 125 70 72 4.5
20 0.12 130 150 125 70 72 5
25 0.1 150 185 130 135 85 7.5
30 0.08 150 185 130 135 85 8
40 0.06 150 185 150 135 95 8
50 0.05 150 185 160 135 105 9
60 0.04 150 185 170 135 105 11
75 0.03 180 225 160 180 100 13
100 0.02 180 225 175 180 100 16
125 0.016 180 225 190 180 110 18
150 0.014 180 225 190 180 120 21
175 0.01 210 270 190 197 115 25
200 0.01 210 270 195 197 135 30
250 0.008 210 270 195 197 145 35
300 0.005 290 335 200 165 140 46
380~480 5 3.4 140 150 80 70 57 3
7.5 2.1 140 150 85 70 62 4
10 1.32 140 150 84 70 62 4
15 1.06 130 150 125 70 72 4.5
20 0.7 130 150 125 70 72 5
25 0.58 150 185 124 135 85 6
30 0.41 150 185 123 135 85 7
40 0.33 150 185 146 135 95 8
50 0.24 150 185 160 135 105 10
60 0.22 150 185 158 135 105 10
75 0.18 180 225 170 180 100 15
100 0.15 180 225 166 180 100 15
125 0.15 180 225 192 180 110 20
150 0.13 180 225 188 180 120 25
175 0.13 210 270 190 197 115 26
200 0.1 210 270 195 197 135 30
250 0.08 210 270 205 197 145 35
300 0.05 290 335 200 165 140 46

Remarks: Wiring below 10HP is terminal and wiring below 10HP is terminal type
